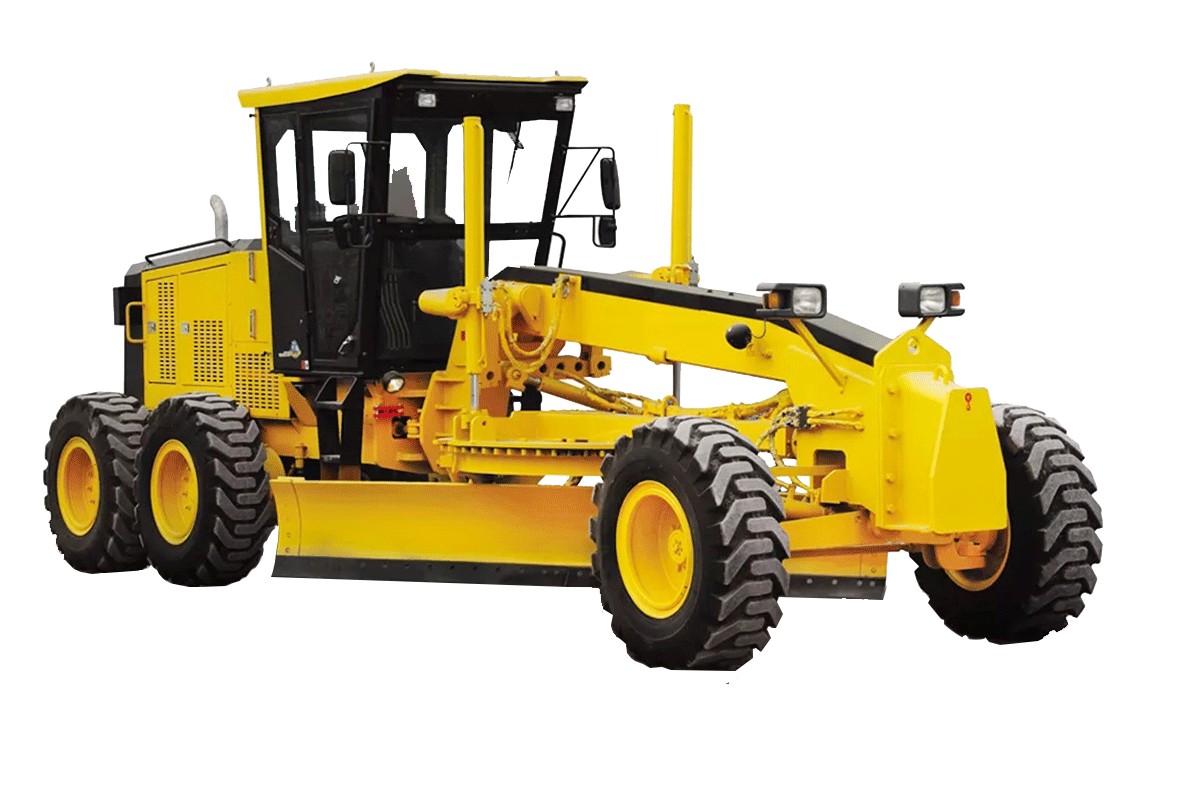

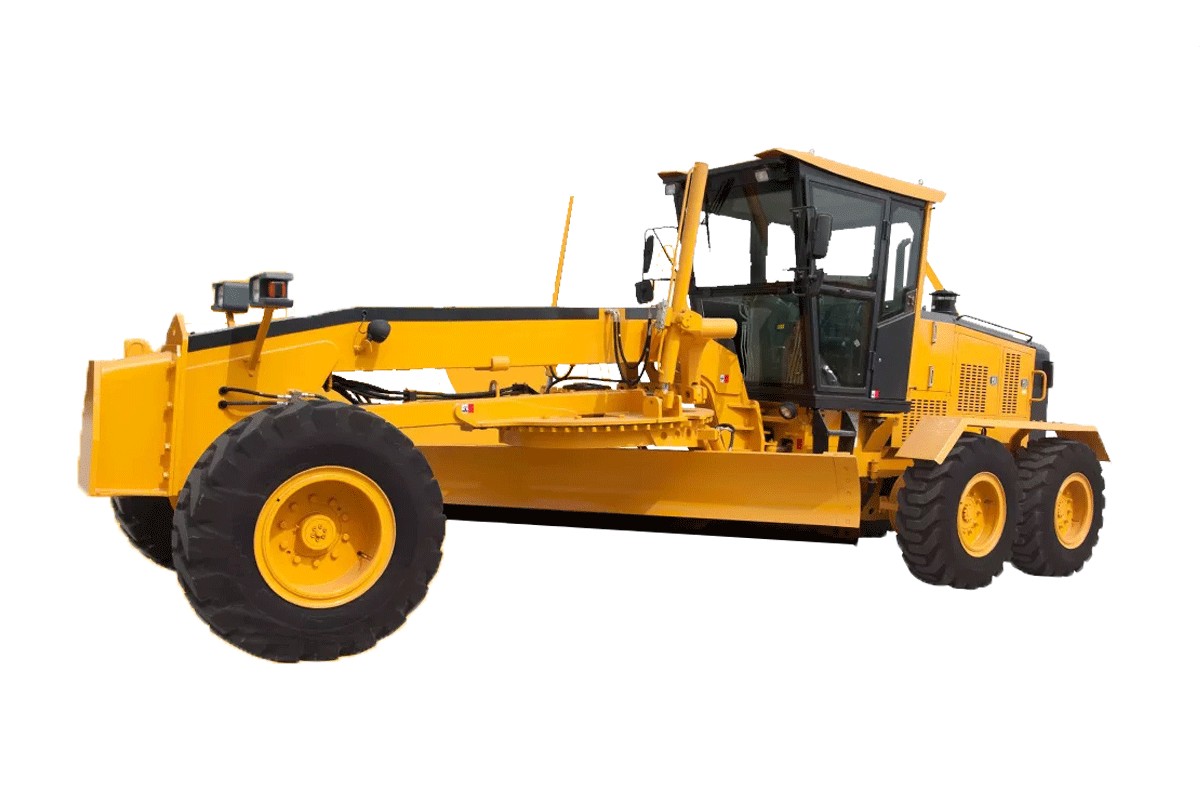

HW180 Motor Grader

Product Categorie: Motor Grader
Operating Weight: 15700kg
Rated Power: 132Kw
Width of Shovel Blade: 3660/3965mm

Parameter

Product name	SG18-3
Performance parameters
Operating weight of machine (kg)	15900
Wheelbase (mm)	6260
Wheel tread (mm)	2155
Minimum ground clearance (mm)	430
Steering angle of front wheels (°)	±45
Articulated steering angle (°)	±25
Maximum traction force (kN)	83.5 (f=0.75)
Turning radius (mm)	7,800 (Outer side of front wheel)
Maximum gradeability (°)	20
Width of shovel blade (mm)	3660/3965
Height of shovel blade (mm)	635
Blade slewing angle (º)	360
Blade cutting angle (º)	37-83
Maximum digging depth of blade (mm)	500
Length (mm)	9015
Width (mm)	2600
Heigh (mm)	3400
Engine
Engine model	6BTAA5.9-C180
Emission	China-II
Type	Mechanical direct injection
Rated power/rated speed (kw/rpm)	132kW/2200rpm
Drive system
Torque converter	Single-stage single-phase three-element
Transmission	Countershaft power shift
Gears	Six forward and three reverse

Power System:

● The machine is equipped with a Dongfeng Cummins 6BTAA5.9-C180 diesel engine, which is inline, 4-stroke, direct injection, water-cooled, turbocharged, and intercooled. This engine complies with China-II emission standards and is known for its compact structure, stable performance, and high efficiency and energy-saving capabilities.

● The machine's high torque reserve ensures stable power output even under demanding working conditions, meeting all your operational requirements.
