HWF50 horizontal directional drill rig
Product Categorie: Horizontal Directional Drilling
rated power：46.2/2200 KW/R/MIN
maximum torque:2235N-M
maximum pressure：20MPA
HWF50 horizontal directional drill rig
| HW50F Horizontal Directional Drill | |||
| Machine Configuration | Operating Weight | 3450kg | |
| Engine Brand | Yanmar | ||
| Engine Model | 4TNV98C-CSCTY | ||
| Engine Power | 46.2KW | ||
| Fuel Tank Capacity | 72L | ||
| Main Pump Displacement | 76ml/r | ||
| Hydraulic Oil Tank Capacity | 120L | ||
| Working Pressure | 20Mpa | ||
| Dimensions | 3880*1330*1800mm | ||

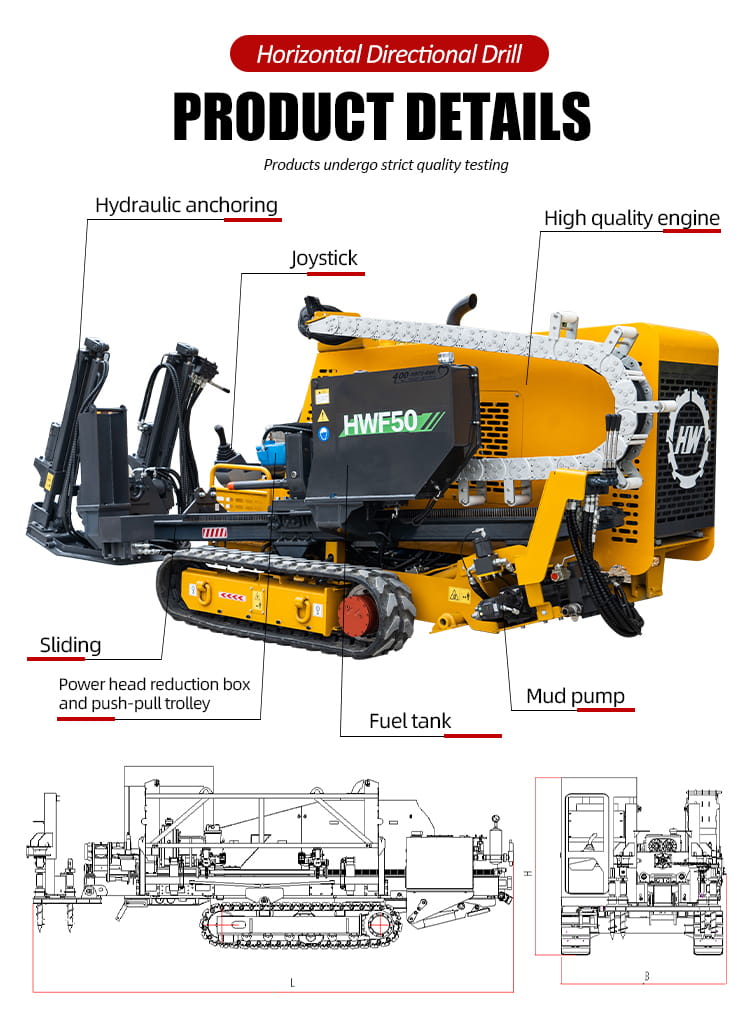

| Hydraulic Anchoring Device | Standard configuration | ||

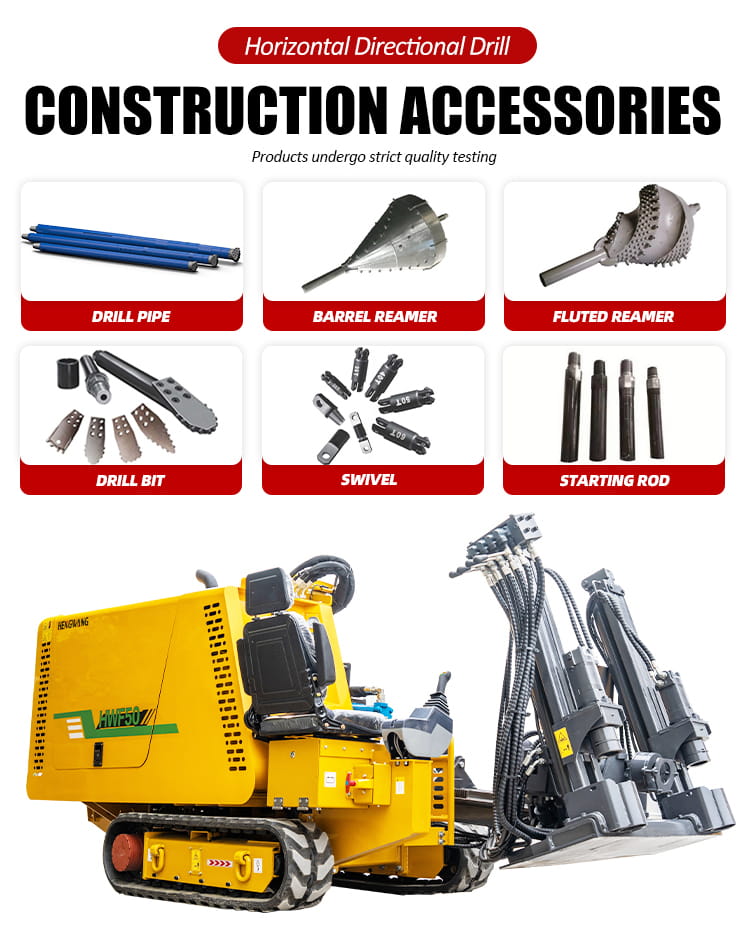

| Drill Rod Box | Holds 44 rods (φ42mm drill rods) | ||
| Technical Specification | Power Head Push/Pull | Drive Type | Single motor drive |
| Maximum Pullback/Feed Force | 50/50KN | ||
| Maximum Running Speed of Power Head | 61m/min | ||
| Power Head Rotation | Type | Single motor drive | |
| Maximum Rotation Speed | 215r/min | ||
| Maximum Torque of Power Head | 2235N·m | ||
| Drill Rod Specification | Standard configuration | φ42*1828mm | |
| Entry Angle | 16-20° | ||
| Crawling Drive | Crawling Drive Type: | Rubber track | |
| Crawling Speed | 2.5km/ h | ||
| Mud Pump | Maximum Flow Rate | 75L/min | |
| Maximum Pressure | 60Bar | ||
| Rotation Diameter | φ150-400min | ||
| Maximum Working Distance | 100m | ||
Main Features:
Yanmar Stage IV Engine: Powerful and reliable performance.

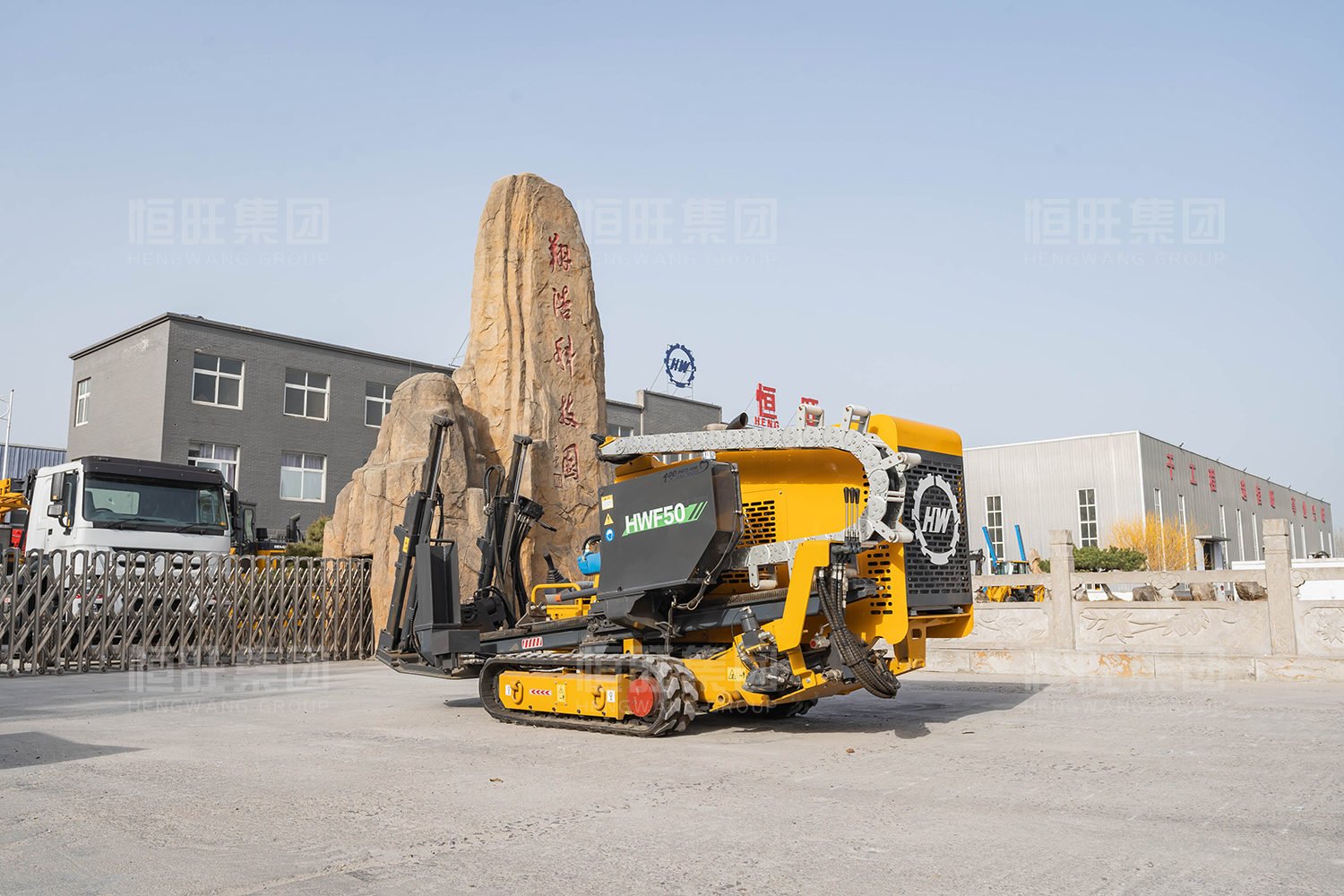

Rubber Track Crawler: Suitable for various ground conditions, reducing surface damage.
Compact Design: Ideal for projects with limited working area or short-distance construction, solving the difficulty of working in narrow spaces.
Equipped with Drill Rod Box: Easy single-person operation with high efficiency.

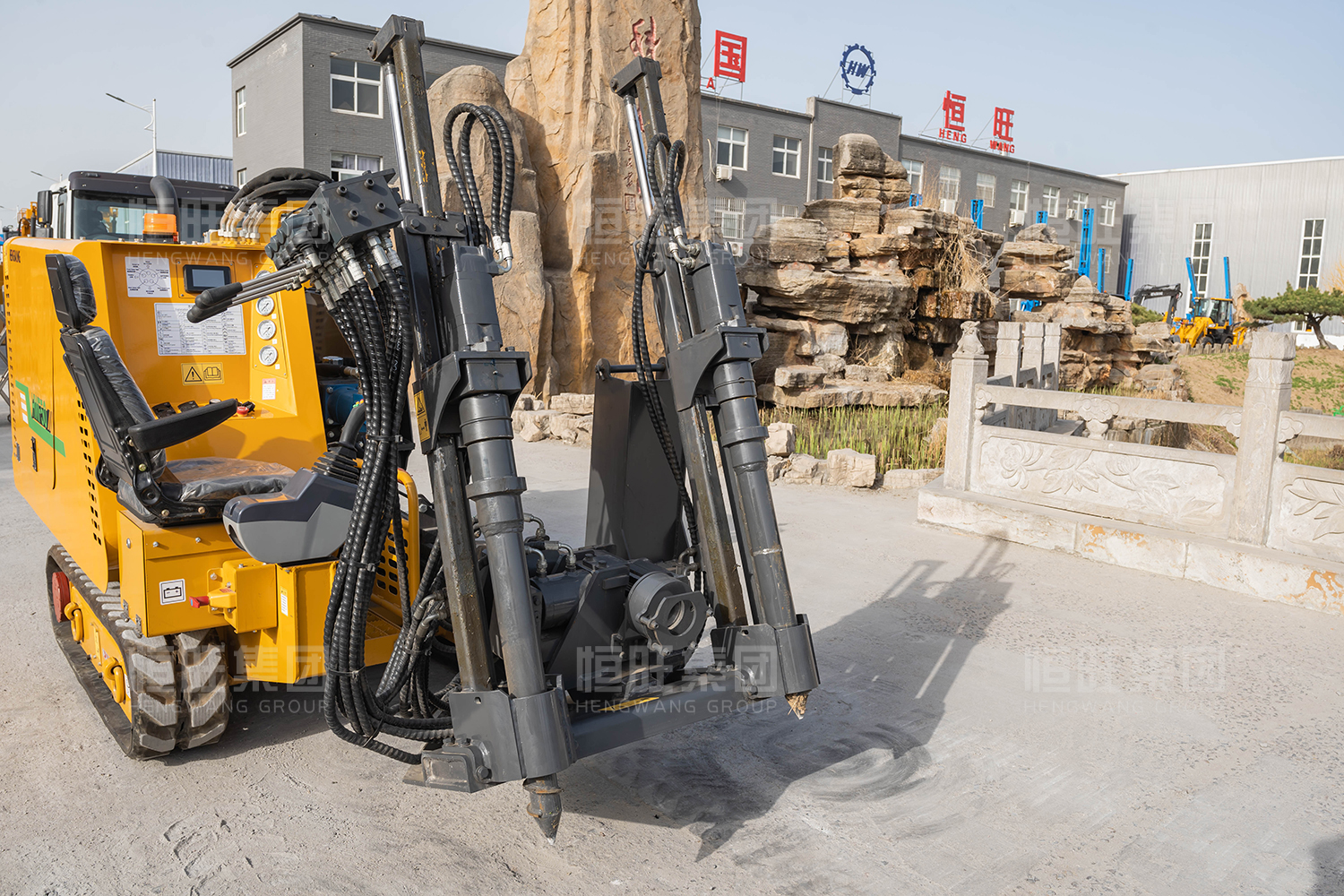

Automatic Hydraulic Anchoring System: Standard configuration for improved stability.
