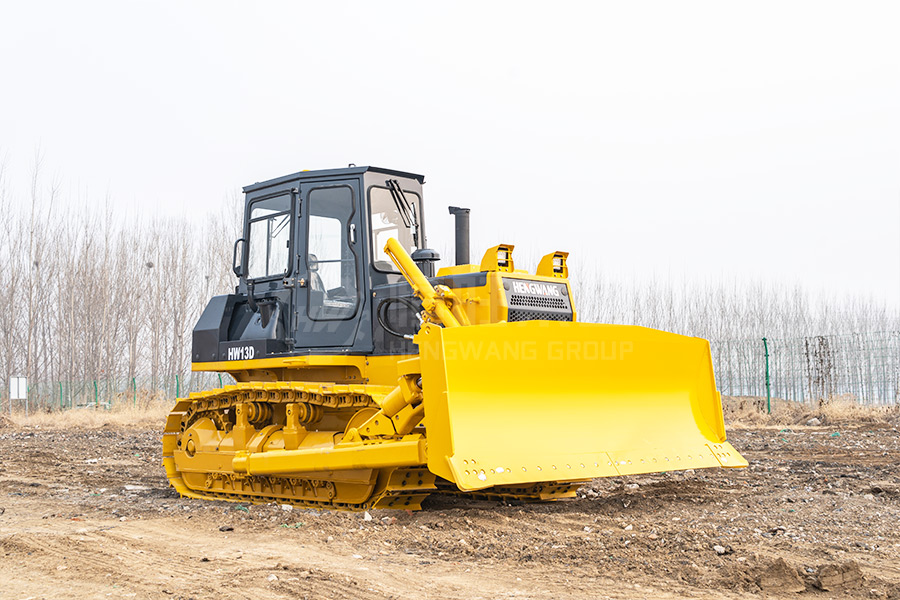

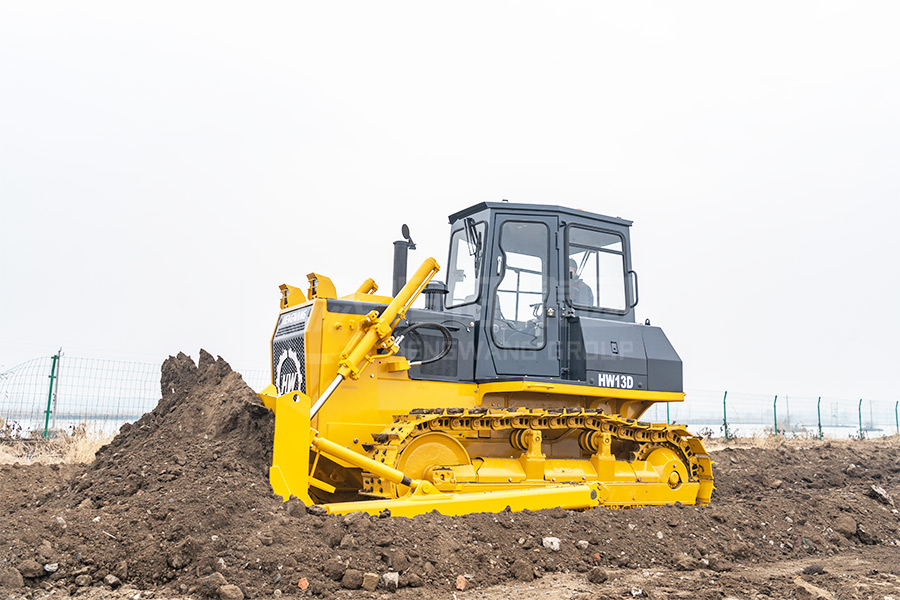

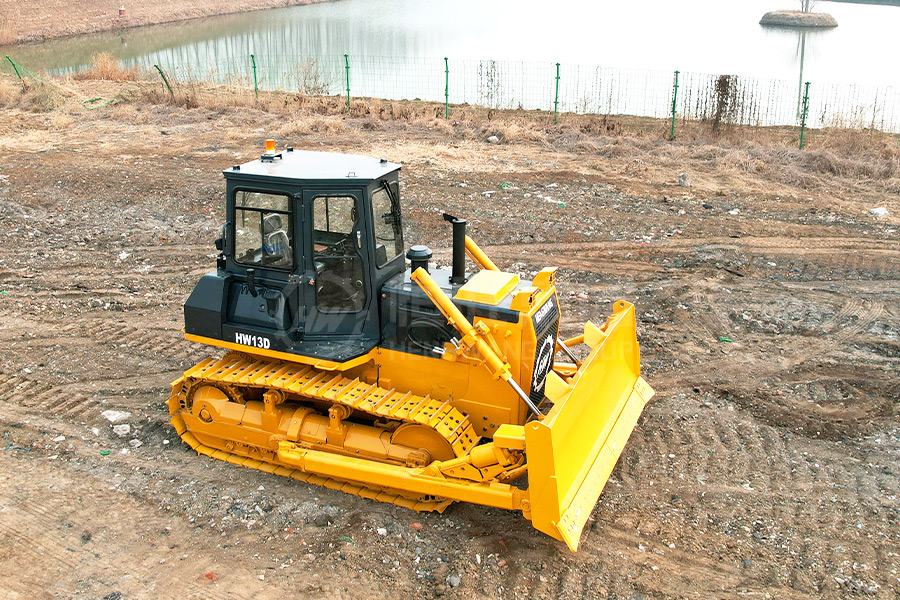

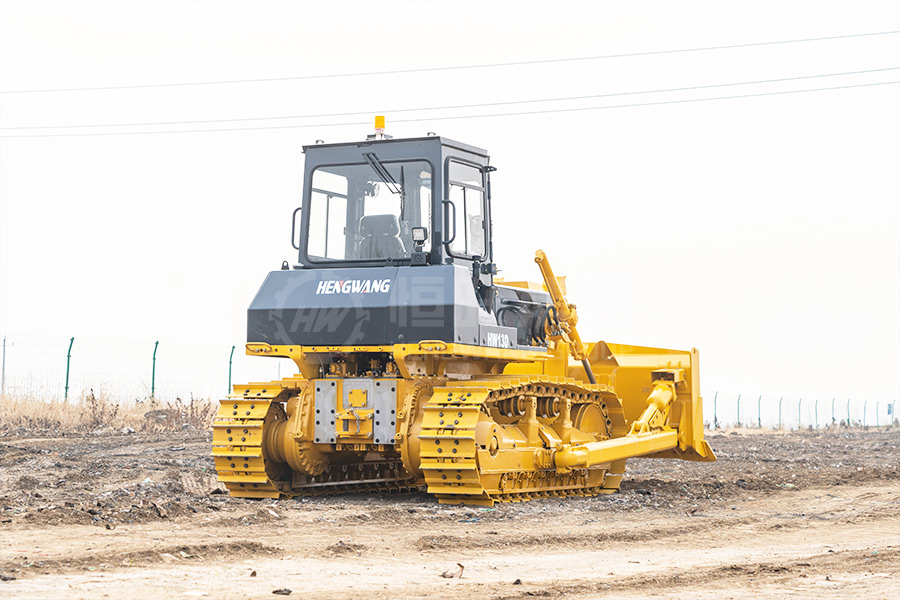

HW13 Bullzoder

HW13 Bullzoder

Product Categorie: Bulldozer
Rated Power: 105kw/1900rpm
Operating Weight: 13,700kg
Engine Model:SC8D143G2B1/SC8DK


Parameter name

HW13 (Standard version)

HW13S (Wetland version)

Operating weight (Kg)

13700

14900

Ground pressure (kPa)

53.8

38.4

Engine model

SC8D143G2B1 (China-II) /SC8DK (China-III)

SC8D143G2B1 (China-II) /SC8DK (China-III)

Rated power/rated speed (kW/rpm)

105/1900

105/1900

Overall dimensions of machine (mm)

4492*3185*2950

4492*3510*3000

Forward speed (km/h)

F1: 0-3.2 F2:0-5.9 F3:0-9.8

F1: 0-3.2 F2:0-5.9 F3:0-9.8

Reversing speed (km/h)

R1:0-3.9 R2:0-7.1 R3:0-11.9

R1:0-3.9 R2:0-7.1 R3:0-11.9

Center distance of track (mm)

1880

1880

Width of track shoes (mm)

460

700

Ground length (mm)

2365

2365

Working Adaptability


● Our self-developed, well-established product chassis system is suitable for a wide range of challenging working conditions, offering exceptional stability and reliability.

● The product boasts a long ground length, high ground clearance, reliable driving, and excellent maneuverability.

● Depending on the specific working conditions, the equipment can be fitted with an environmental sanitation blade, ripper, or universal blade, ensuring optimal adaptability for different tasks. Additionally, optional LED working lamps enhance visibility during nighttime operations, thus increasing safety and reliability.
